BULK MILK TANK WASHERS

The Cotswold range of Bulk Tank Washers are designed for use on open top ice bank tanks and also enclosed and open top DX tanks

Overview

The Cotswold range of Bulk Tank Washers was originally designed for use on open top ice bank tanks but with the introduction of the hot wash versions, they can now also be used on enclosed and open top DX tanks. The 500 models are suitable for bulk tanks up to 2270 litres and the 1000 models up to 4500 litres, or two tanks of up to 2270 litres.

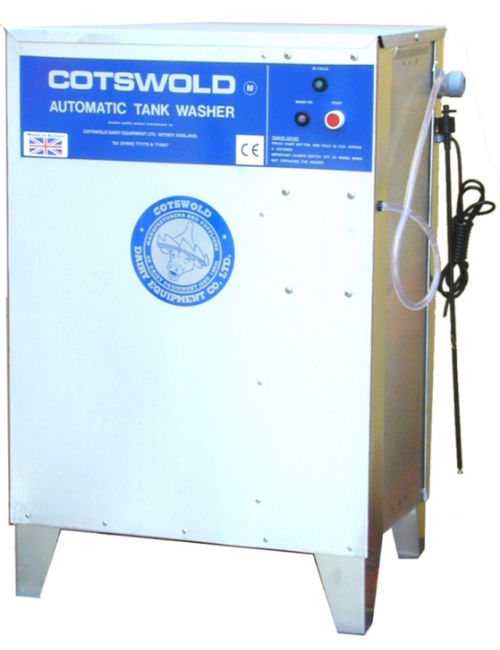

Bulk Tank Washer

Product Features

  • Stainless steel cabinet with heavy duty polypropylene tank.

  • Floor standing.
  • Easy to install.

  • Requires only a 13 amp power supply.

  • Built in water tank means they will work even in dairies with poor water pressure.

  • Control has a variety of wash settings to suit individual situations.

  • Adjustable chemical entrainment using iodophor or phosphoric acid.

  • 500 models have a single pump, a 68 litre water tank and come complete with two Mexican hat plastic sprayheads.

  • 1000 models have twin pumps, a 100 litre tank and come complete with four Mexican hat plastic sprayheads.

OPTIONS AVAILABLE

  • Hot wash with built in heating element and thermostat (max temp 50° C available on all models)
  • Hypochlorite final rinse (available on all models)
  • Stainless steel heavy duty sprayheads (available at extra cost and recommended on hot wash models)
  • The 1000 models, all types, can also be supplied with a three position switch, where two tanks of 2270 litres or less are being washed together or separately, at certain times of the year.
  • Supplied as standard with 2 spray heads
  • Will operate up to three spray heads
  • 68 Litre water tank
  • To wash tanks up to 2279 Litres (500 gallons)
  • Supplied as standard with 4 spray heads
  • Will operate up to six spray heads
  • 100 Litre water vessel
  • To wash tanks up to 4,500 litres (1,000 gallons)
  • Max temperature 50 degrees C
  • 3 KW Stainless steel heads recommended
  • Recommended for DX tanks
  • Additional chemical entrainment solenoid
  • Sanitising chemical added to final rinse water
  • Mandatory in some areas
  • Recommended where bore-hole water is used
