COIL UDDERWASHER

A simple 45 Litre coil water heater producing warm water at up to 50 degrees at Mains Water Pressure

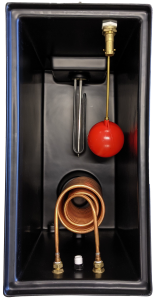

Internal copper heat exchange coil

General purpose heater for washing teats, clusters, and hands in the milking parlour

Inner vessel is moulded polypropylene. Insulated with polyurethane. Stainless-steel outer case

Fitted with a stainless-steel mounting bar for easy installation

Mount the heater on a floor, or on a stand if a suitable solid wall is not available

Insulated stainless steel lid with seal that is easily removed for access

3Kw 1 phase stainless steel element with 3m of cable

Rod thermostat temperature control

*** Make sure there is sufficient mains water pressure during milking time ***



Other specifications:

½” BSP male connections for entry and exit to the heat exchange coil

½” BSP male connection to a simple ball valve fill for the reservoir

½” Straight stem overflow

¾” BSP male drain point with cap



Options

As a standalone coil heater

Coil heater for udder wash guns in milking parlour

Install with Dosatron for disinfectant water supply

Product Features

  • A ready supply of fresh clean warm water at mains pressure.

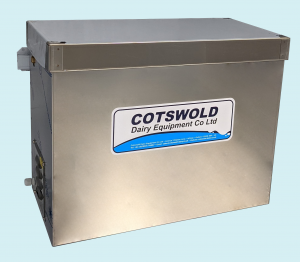

  • Floor-standing or wall-mounted stainless steel cabinet with moulded polypropylene fully-insulated inner vessel.

  • Gives a ready supply of fresh, clean mains water at mains pressure to wash cows. (We can supply a pressure reducing valve if needed). Can be fitted at any height, as water in coil at mains pressure.

  • 10 gallon/45 litre capacity heater.

  • Cooper heat-exchanger coil runs through the hot water in the heater.

  • Fresh warm water supplied at mains pressure via the coil (good water pressure required).

  • Suitable for udder washing in small and large parlours.

  • Capacity to wash every cow or selected cows.

  • 3Kw thermostatically controlled element for quick heating.

  • Independant supply of warm water available for calf feeding etc.

  • Will run off a 13 amp electricity supply.

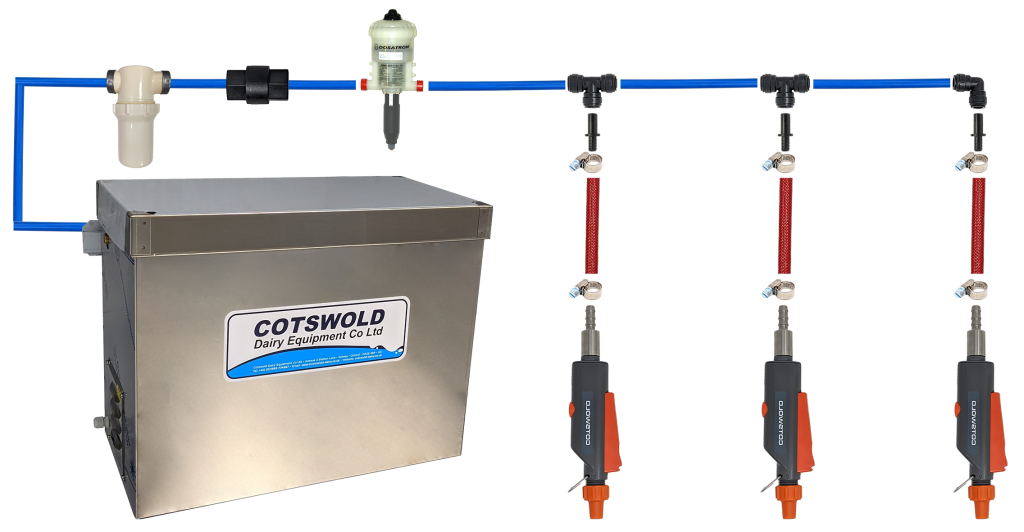

COIL UDDERWASHER DIAGRAM

Please note: This is a suggested layout. The pressure regulator, water filter, one way valve, and Dosatron are optional extras and are not included in the base kit.

Note: This unit can also be supplied as a straight forward 10 gallon/45 litre gravity water heater, without the copper coil fitted.
